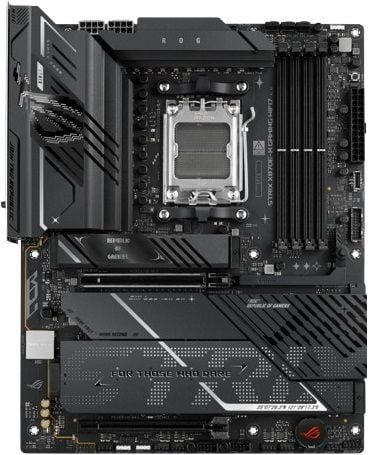

Asus ROG STRIX X870E-H WIFI 7 AMD X870E DDR5 Gaming Motherboard

Extreme Power & Performance

Dual ProCool II Power Connectors

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

EXPANSION SLOTS

・ 1 x PCIe 5.0 x16 SafeSlot [CPU]

・ 1 x PCIe 4.0 x16 Slots (x4) [Chipset]

16(80A)+ 2(80A)+ 1(80A) Power Stages

DDR5 8000+ MT/s (OC)

・ 4 x DIMM

・ Dual Channel

4 x M.2 Slots

・ 1 x M.2 2280 (PCIe 5.0 x4)

・ 1 x M.2 22110 (PCIe 5.0 x4)

・ 2 x M.2 2280 (PCIe 4.0 x4)

ASUS AI
INTELLIGENCE

AI CACHE BOOST

Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

Balance the thermals and acoustics of any build with a single click.

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

The Strix X870E-H is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.

AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

PerformanceCOOLING

M.2

M.2 HEATSINKS

VRM

VRM HEATSINK ARRAY

CPU

CPU FAN HEADERS, AIO PUMP FAN HEADER

CHASSIS

4-PIN FAN HEADERS

leading Connectivity

wifi7

160MHz



6GHzbands



4096QAM

Realtek 5Gb Ethernet

pcie 5.0

Fully embracing the new standard, the Strix X870E-H offers end-to-end PCIe 5.0 support.

USB PORTS



DUAL USB4 PORTS



USB 10Gbps
with up to 30W PD Fast-charge

Gaming Audio

EZ PC DIY



M.2 Q-Release



New M.2 Q-LATCH



PCIE

 SLOT Q-RELEASE



Q-Antenna



Q-LED



start button



CLEAR CMOS& BIOS FLASHBACK

BIOS



BIOS Q-DASHBOARD

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

UEFI BIOS FULL HD

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.



SOFTWARE UTILITIES

ASUS GLIDEX

HWiNFO

ASUS DRIVER HUB

AIDA64 EXTREME

ARMOURY CRATE



ASUS GLIDEX

ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.



Mirror



Extend(PC to Mobile)

Extend(PC to PC)

Unify Control



HWiNFO

HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.







ASUS DRIVER HUB

ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.



AIDA64 EXTREME

The ROG Strix X870E-H includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
*Support available for ROG Ryujin II and later models.



ARMOURY CRATE

Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

PLAY IN STYLE

UNDENIABLY ROG STRIX

The ROG Strix X870E-H is sleek and understated, empowering you to seamlessly combine it with a wide range of system components. Its deep black PCB and matching metallic heatsinks create a dark and intense look.


VIDEO



COOLER COMPATIBILITY

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for X870 motherboards, empowering you to build your dream gaming rig.



THE ROG STRIX ECOSYSTEM AWAITS

Level up your game with ROG Strix. Enjoy complimentary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.
