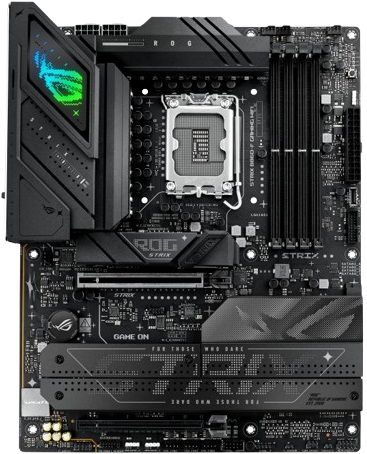

Asus ROG Strix B860-F WIFI DDR5 Gaming Motherboard With Ai Advisor

Performance

Cooling

Gaming Immersion

Connectivity

Extreme Power & Performance

ProCool Power Connectors

Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2)

EXPANSION SLOTS

 1 x PCIe 5.0 x16 SafeSlot [CPU]

 1 x PCIe 4.0 x16 Slot (x4) [Chipset]

16(80A)+1(80A)+2(80A)+1(80A) Power Stages

DDR5 9066+ MT/s (OC)

4 x DIMM

Dual Channel

4 x M.2 Slots

1 x M.2 2280 (PCIe 5.0 x4)

1 x M.2 22110 (PCIe4.0 x4)

2 x M.2 2280 (PCIe4.0 x4)

ASUS AI
INTELLIGENCE

ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

 Availability of ASUS AI Advisor may vary by region.
 AI Advisor functions may vary by platform.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Features may vary by model.

PerformanceOVERCLOCKING

NPU BOOST

The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

 The overclocking performance may vary depending on the CPU series and motherboard used.
 Testing was conducted with an Intel Core Ultra 9 285K processor , ROG Maximus Z890 Extreme motherboard, GeForce RTX 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).

Asynchronous Clock

For next-level frequency flexibility, the ROG Strix B860-F features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.

Separate CPU BCLK from other domains for unfettered overclocking.

NGU stands for Next Generation Uncore.

PerformanceMEMORY

DDR5 DOMINATION

Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-F.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

DIMM Fit / DIMM Fit Pro

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.

ROG STRIX ULTIMATE
POWER DESIGN
16(80A)+1(80A)+2(80A)+1(80A)
Power Stages

PerformanceCOOLING

M.2

M.2 HEATSINKS

VRM

VRM HEATSINK ARRAY

CPU

CPU FAN HEADERS, AIO PUMP FAN HEADER

CHASSIS

4-PIN FAN HEADERS

leading Connectivity

wifi7

160MHz

6GHzbands

4096QAM

Intel 2.5Gb Ethernet

pcie 5.0

Fully embracing the new standard, the Strix B860-F offers end-to-end PCIe 5.0 support.

USB PORT

Thunderbolt 4

Gaming Audio

EZ PC DIY

M.2 Q-Release

M.2 Q-Slide

New M.2 Q-LATCH

PCIE SLOT Q-RELEASE SLIM

Q-Antenna

Q-LED

POWER BUTTON

CLEAR CMOS& BIOS FLASHBACK

Model for reference only

BIOS

BIOS Q-DASHBOARD

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

UEFI BIOS FULL HD

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

SOFTWARE UTILITIES

TURBOV CORE

ASUS GLIDEX

HWiNFO

ASUS DRIVERHUB

AIDA64 EXTREME

ARMOURY CRATE

TURBOV CORE

Intuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.

ASUS GLIDEX

ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.

Mirror

Extend(PC to Mobile)

Extend(PC to PC)

Unify Control

HWiNFO

HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.

ASUS DRIVERHUB

ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.

AIDA64 EXTREME

The ROG Strix B860-F includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers.

Support available for ROG Ryujin II and later models.

ARMOURY CRATE

Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

PLAY IN STYLE

UNDENIABLY ROG STRIX

With colorful accents, Aura Sync lighting, and a sleek black PCB, the ROG Strix B860-F gives you a bold start to your rig, especially when complemented by similarly vibrant products in the ROG ecosystem.


VIDEO

OUTSHINE THE COMPETITION

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

Static

Breathing

Strobing

Rainbow

Color cycle

Starry night

Music

Smart

Adaptive color

Dark

Pause

COOLER COMPATIBILITY

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for B860 motherboards, empowering you to build your dream gaming rig.
