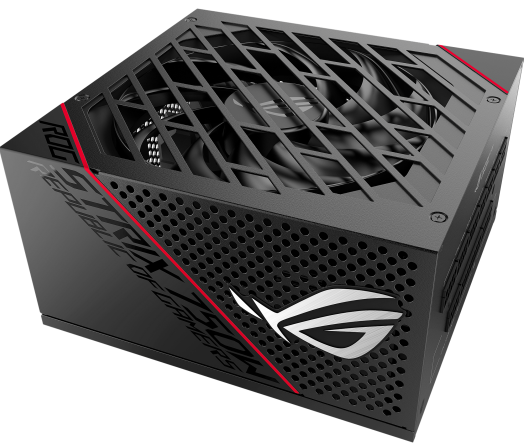

ASUS ROG Strix 850G 850W 80 PLUS Gold Modular Power Supply
SKU
N50857
Feature
Specification
Product Specification
Connectivity
Total Connectors |
1 x 20+4-Pin ATX Motherboard 2 x 4+4-Pin EPS CPU 6 x 6+2-Pin PCIe 8 x 15-Pin SATA 6 x 4-Pin Peripheral / Molex |
Cable Design |
Modular |
ATX Connector Distance |
24″ / 610 mm |
EPS Connector Distances |
39.4″ / 1000 mm |
Electrical
Total Wattage |
850 W |
Number of +12 V Rails |
1 |
Combined Power for +12 V |
840 W |
Max Load for +12 V |
70 A |
Combined Power for +3.3/+5 V |
100 W |
Max Load for +3.3 V |
20 A |
Max Load for +5 V |
20 A |
Max Power for +5 Vsb |
15 W |
Max Load for +5 Vsb |
3 A |
Max Power for -12 V |
3.6 W |
Max Load for -12 V |
0.3 A |
AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
General
Efficiency
Rating |
80 PLUS Gold |
Cooling
Fan Size |
135 mm |
Bearing Type |
Ball |
Physical
Form Factor |
ATX |
Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection |
Certifications |
RoHS, as per Manufacturer |
Dimensions |
0.63 x 0.34 x 0.71″ / 16 x 8.6 x 18 mm |
Weight |
0 lb / 1.83 g |
Brand | Asus |
---|---|
Shipping | Same Day From Lahore |
