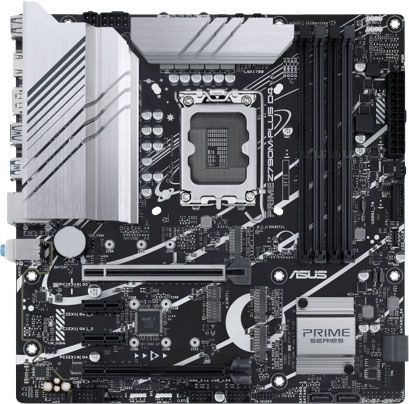

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13thGen Intel®Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
10 + 1 Power Stages (50A) with Enlarged Heatsinks
Gen 5 Slot for Graphics Card
USB 3.2 Gen 2x2 Type-C® & Thunderbolt (USB4®) Support
1.0 Gb Ethernet
Al Cooling II
Intel®Socket LGA1700 for 13thGen Intel®Core™ Processors & 12thGen Intel®Core™, Pentium®Gold and Celeron®Processors
1 x PCIe 5.0 x16 SafeSlot Core+ 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1
4 x DIMM
DDR4 5333(OC) Dual Channel OptiMem II
3 x M.2 Slots
1 x M.2 2280 (PCIe 4.0 x4 mode) 1 x M.2 2280 (PCIe 4.0 x4 mode) 1 x M.2 2280 (PCIe 4.0 x4 & SATA modes)
CPU Fan Headers
CHA Fan Header
AIO Pump Header
CHA Fan Header
CHA Fan Header
2 x Addressable Gen 2 Headers
1 x Aura RGB Header
1 x Addressable Gen 2 Header
2 x USB 2.0 ports (Type-A)
1 x USB 3.2 Gen 2 port (Type-A)
1 x USB 3.2 Gen 2x2 Type-C®
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Intel 1Gb Ethernet
3 x Audio Jacks
1 x USB 3.2 Gen 1 Header
1 x USB 3.2 Gen 1 Type-CConnector
2 x USB 2.0 Headers
Thunderbolt™ (USB4®) Header
4 x SATA 6Gb/s
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790M-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
PRIME Z790M-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsinks and Thermal Pads
The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
PRIME Z790M-PLUS D4 features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.
The PRIME Z790M-PLUS D4 motherboard is built to handle the high core counts and bandwidth demands of 13thGen Intel®Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790M-PLUS D4 is geared to cater to the demands of these high-core-count CPUs.
Proprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
The PRIME Z790M-PLUS D4 motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
