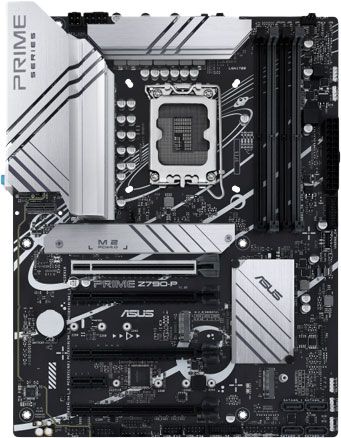

Asus Prime Z790 P CSM (LGA 1700) ATX Motherboard
SKU
U59234
Category: Motherboard
PRIME Z790-P-CSM
Z790-P-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
14 + 1 Power Stages (50A) with Enlarged Heatsinks
Gen 5 Slot for Graphics Card
AEMP II for Ultimate DDR5 Performance
USB 3.2 Gen 2x2 Type-C® & Thunderbolt (USB4®) Support
2.5 Gb Ethernet
Intelligent Control
Al Cooling II
Customization
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Expansion Slots
• 1 x PCIe 5.0 x16 SafeSlot Core+
• 3 x PCIe 4.0 x16
• 1 x PCIe 3.0 x1
14+1 DrMOS
4 x DIMM
• DDR5 7200+(OC)
• Dual Channel
• AEMP II
• OptiMem II
3 x M.2 Slots
• 1 x M.2 22110 (PCIe 4.0 x4 mode)
• 1 x M.2 2280 (PCIe 4.0 x4 mode)
• 1 x M.2 22110 (PCIe 4.0 x4 & SATA modes)
VRM Heatsinks
One M.2 Heatsink for two M.2 Slots
CPU Fan Headers
AIO Pump Header
CHA Fan Header
Chipset Heatsink
CHA Fan Headers
1 x Aura RGB Header
1 x Addressable Gen 2 Header
1 x Aura RGB Header
2 x Addressable Gen 2 Headers
DisplayPort
HDMI®
2 x USB 2.0 ports (Type-A)
2 x USB 3.2 Gen 1 ports (Type-A)
2 x USB 2.0 ports (Type-A)
Realtek 2.5Gb Ethernet
1 x USB 3.2 Gen 2x2 Type-C®
1 x USB 3.2 Gen 2 port (Type-A)
3 x Audio Jacks
1 x Vertical M.2 slot (Key E)
1 x USB 3.2 Gen 1 Header
1 x USB 3.2 Gen 2 Type-C® Connector
Thunderbolt™ (USB4®) Header
2 x USB 2.0 Headers
1 x USB 3.2 Gen 1 Header
4 x SATA 6Gb/s
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.
Learn more about ASUS CSM program
ASUS Control
Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Learn more about ASUS Control Center Express
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P-CSM motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
COOLING
PRIME Z790-P-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Heatsinks
Removable captive screws reduce risk of drops or loss during heatsink removal.
M.2 Heatsink
The flexible M.2 heatsink with removable captive screws can take care of the M.2_1 or M.2_3 slot, warding off throttling that can occur with M.2 storage during sustained transfers.
VRM Heatsinks and Thermal Pads
The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
PRIME Z790-P-CSM features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.
PERFORMANCE
The PRIME Z790-P-CSM motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P-CSM is geared to cater to the demands of these high-core-count CPUs.
ProCool Connectors
Proprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
CUSTOMIZATION
The PRIME Z790-P-CSM motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
Audio Shielding
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
Australian PC Awards 2021
| Brand | Asus |
|---|---|
| Warranty | 1 Year Manufacturer |
| Shipping | Same Day From Lahore |
