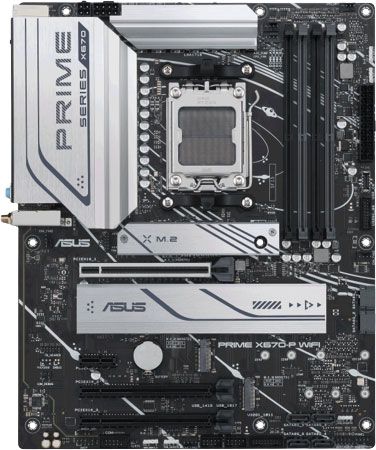

Asus Prime X670-P WIFI CSM Motherboard
SKU
U60715
Category: Motherboard
12+2 DrMOS Power Stages (60A) with Enlarged Heatsinks
Gen 5 Slot for Storage
DDR5 Support
USB 3.2 Gen 2x2 Type-C
2.5 Gb Ethernet
WiFi 6
Intelligent Control
Al Cooling II
Customization
AM5 Socket for AMD Ryzen
7000 Series Desktop Processors
Expansion Slots
・1 x PCIe 4.0 x16 (supports x16 mode)
SafeSlot Core+
・2 x PCIe 4.0 x16 (support x4 mode)
・1 x PCIe 3.0 x1
12+2 DrMOS
4 x DIMM
・DDR5 6400+(OC)
・Dual Channel
・OptiMem II
3 x M.2 Slots
・1 x M.2 2280 (PCIe 5.0 x4 mode)
・1 x M.2 22110 (PCIe 4.0 x4 mode)
・1 x M.2 2280 (PCIe 4.0 x4 mode)
VRM Heatsinks
M.2 Heatsink
CHA Fan Header
Chipset Heatsink
CPU OPT Fan Header
AIO PUMP Fan Header
CPU Fan Header
CHA Fan Header
CHA Fan Header
1 x Addressable Gen 2 Header
2 x Addressable Gen 2 Headers
2 x Aura RGB Headers
1 x PS/2
2 x USB 2.0 (2 x Type-A)
BIOS FlashBack™ button
HDMI®
DisplayPort
4 x USB 3.2 Gen 1 (4 x Type-A)
1 x USB 3.2 Gen 2x2
(1 x USB Type-C®)
3 x USB 3.2 Gen 2 (3 x Type-A)
2.5 Gb Ethernet
3 x Audio jacks
Wi-Fi 6
1 x USB 3.2 Gen 1 connector
(supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x SATA 6Gb/s ports
1 x Thunderbolt™ (USB4®) Header
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
4 x SATA 6Gb/s ports
2 x USB 2.0 headers support
additional 4 USB 2.0 ports
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.
Learn more about ASUS CSM program
ASUS Control
Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs
Learn more about ASUS Control Center Express
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotel
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME X670 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
COOLING
PRIME X670 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Heatsinks
Removable captive screws reduce risk of drops or loss during heatsink removal.
M.2 Heatsink
An M.2 heatsink takes care of the M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers.
VRM Heatsinks and High-quality Thermal Pads
Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Passive Chipset Heatsink
An aluminum passive chipset heatsink ensures optimal cooling for more stable performance. The passive heatsink approach is more durable and longer-lasting, avoiding dust and dirt build-up problems often encountered by conventional active heatsinks with dedicated fan designs.
Cooler by Design
PRIME X670 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.
PERFORMANCE
The PRIME X670 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS X670 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of AMD processors. The PRIME X670-P WIFI-CSM is geared to cater to the demands of these high-core-count CPUs.
ProCool Connectors
Proprietary connectors augment the motherboard's link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
CUSTOMIZATION
The PRIME X670 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
Audio Shielding
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
