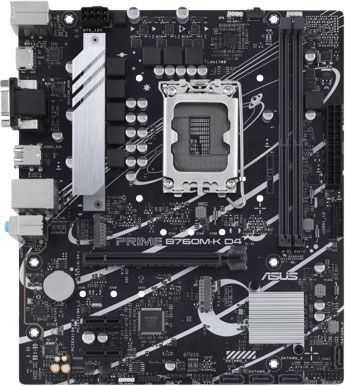

Asus Prime B760M-K D4 LGA 1700 mATX Motherboard

SKU

U60877

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Rs 46,999.00

In stock

Notify me when the price drops

Category: Motherboard

Special Offers

Details

B760M-K D4

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13^th Gen Intel^® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

All specs of the PRIME B760M-K D4 motherboard

2 x USB 2.0 ports (type-A)

1 x HDMI^® port

1 x VGA port

4 x USB 3.2 Gen 1 ports (Type-A)

Realtek 2.5G Ethernet

3 x Audio Jacks

Expansion Slots
• 1 x PCIe 4.0 x16 slot
• 2 x PCIe 4.0 x1 slots

1 x Aura RGB header

8 pin ProCool connector

2 x Addressable Gen 2 headers

Intel^® Socket LGA1700 for 13th Gen Intel^® Core™ Processors & 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors

DDR4 support
• Dual Channel

1 x USB 3.2 Gen 1 header

2 x M.2 slots
• M.2_1 slot (Key M) 2280 (PCIe 4.0 x4 mode)
• M.2_2 slot (Key M) 2280 (PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

2 x USB 2.0 headers

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING

PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance.

Prime motherboard with VRM heatsink image

PERFORMANCE

The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13^th Gen Intel^® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel^® processors. The PRIME B760M-K D4 is geared to cater to the demands of these high-core-count CPUs.

ProCool Connector

Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

CUSTOMIZATION

PRIME B760 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding

Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

Dedicated Audio PCB Layers

Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Premium Audio Capacitors

Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

More Information

Brand	Asus
Warranty	7 Day Replacement
Shipping	Same Day From Lahore
