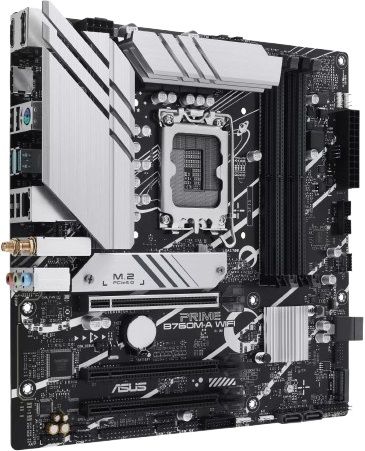

Asus Prime B760M-A Wifi Intel B760 DDR5 LGA 1700 mATX Mortheboard
SKU
U71687
Category: Motherboard
Intel B760 (LGA 1700) mATX mortheboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
B760M-A WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
1 x DisplayPort
2 x HDMI ports
PS/2 combo port
2 x USB 2.0 ports(Type-A)
2 x USB 3.2 Gen 2 ports(Type-A)
2 x USB 2.0 ports(Type-A)
Realtek 2.5G Ethernet
Wi-Fi 6
3 x Audio Jacks
Expansion Slots
• 1 x PCIe 4.0 x16 (max @x16 mode)
SafeSlot Core+
• 1 x PCIe 4.0 x16 (@x4 mode)
• 1 x PCIe 4.0 x16 (@x1 mode)
1 x LPT header
2 x Addressable Gen 2 headers
DDR5 support
• Dual Channel
• OptiMem II
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
1 x USB 3.2 Gen 1 header
1 x USB 3.2 Gen 1 Type-C
2 x M.2 slots
• 1 x M.2 2280 (PCIe 4.0 x4 mode)
• 1 x M.2 2280 (PCIe 4.0 x4 mode)
1 x Addressable Gen 2 header
1 x Aura RGB header
1 x USB 3.2 Gen 1 header
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
COOLING
PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Heatsinks
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.
PERFORMANCE
The PRIME B760 series are built to handle the high core counts and bandwidth demands of 14th, 13th and 12th Gen Intel Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME B760M-A WIFI is geared to cater to the demands of these high-core-count CPUs.
ProCool Connector
Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
CUSTOMIZATION
PRIME B760 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
Audio Shielding
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
| Brand | Asus |
|---|---|
| Warranty | 1 Year Manufacturer |
| Shipping | Same Day From Lahore |
