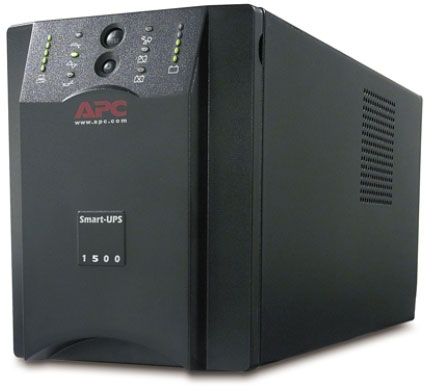

APC SUA1500I Smart UPS & serial 230V

SKU
A50308
APC
Rs 119,999.00
In stock
Output power capacity

980 Watts / 1.5kVA

Output Connections

(8) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

IEC 320 C14

APC Smart-UPS & serial 230V, India specfic
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Smart UPS signalling RS-232 cable, USB cable, User manual

Simplifies installation and UPS maintenance while minimizing space requirements.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

Smart-UPS Features & Benefits

Manageability

Audible alarms

Provides notification of changing utility power and UPS conditions.

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Most models provide remote power management options of the UPS over
the network. Many do not have NMC embedded.

Serial connectivity

Provides management of the UPS via a serial port.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

Marketing features

Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Smarter productivity with ability to tailor to your specific application needs

Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Avoids costly power problems by keeping your IT equipment and data safe and available

Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server
manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the
connected service provider equipment and within the specified environment.

Availability

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Serviceability

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Resettable circuit breakers

Enables a quick recovery from overload events.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Adaptability

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Technical Specifications

Output

Max Configurable Power (Watts)

980 Watts / 1.5kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

47 - 53 Hz For 50 Hz nominal Sync to mains, 57 - 63 Hz For 60 Hz nominal
Sync to mains

Topology

Line interactive

Waveform type

Sine wave

Input

Input frequency

50 Hz +/- 3 Hz

Input voltage range for main operations

151 - 302 Adjustable, 160 - 286V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

RBC Quantity

1

Battery Charge Power (Watts)

136 Watts

Communications & Management

Interface Port(s)

DB-9 RS-232, SmartSlot, USB

Control panel

LED status display with on line : on battery : replace battery and overload indicators

Surge Protection and Filtering

Surge energy rating

480Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

216MM, 21.6CM

Maximum Width

170MM, 17.0CM

Maximum Depth

439MM, 43.9CM

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0 - 3048meters

Storage Temperature

-15 - 40 °C

Storage Elevation

0 - 15240meters

Audible noise at 1 meter from surface of unit

45.0dBA

Online thermal dissipation

135.0BTU/hr
BrandAPC
Warranty1 Year Manufacturer
ShippingSame Day From Lahore
