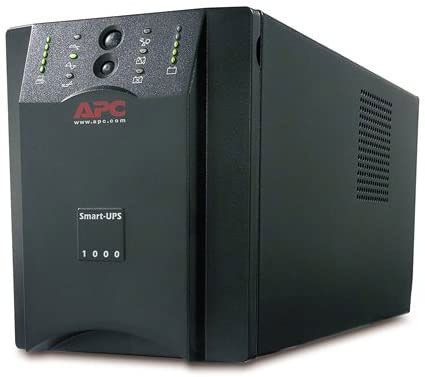

APC SUA1000I Smart UPS
SKU
A50307
Category: UPS
| provided equipment |
CD with software
Smart UPS signalling RS-232 cable User manual USB cable |
|
|---|---|---|
| performance multiplier |
1
|
|
| Number of tare power |
30 W
|
|
| Number of power module free slots |
0
|
|
| Number of power module filled slots |
0
|
|
| redundant |
No
|
|
| size UPS version |
Internetworking
Server Telecom |
|
| UPS size |
S
|
|
| value multiplier |
1
|
| number of rack unit |
0U
|
|
|---|---|---|
| colour |
Black
|
|
| depth |
43.9 cm
|
|
| height |
21.6 cm
|
|
| mounting location |
Front
|
|
| mounting preference |
No preference
|
|
| net weight |
18.86 kg
|
|
| mounting mode |
Not rack-mountable
|
|
| two post mountable |
0
|
|
| USB compatible |
No
|
|
| width |
17 cm
|
| network frequency |
50/60 Hz +/- 3 Hz auto-sensing
|
|
|---|---|---|
| plug standard |
IEC 320 C14
|
|
| input voltage limits |
151...302 V adjustable
160...286 V |
|
| input voltage |
230 V
|
| rated power in W |
670 W
|
|
|---|---|---|
| Maximum configurable power in W |
670 W
|
|
| harmonic distortion |
Less than 5 % at full load
|
|
| output frequency |
47...53 Hz for 50 Hz nominal sync to mains
57...63 Hz for 60 Hz nominal sync to mains |
|
| crest factor |
Up to 5 : 1
|
|
| UPS type |
Line interactive
|
|
| Wave type |
Sine wave
|
|
| nb of power socket outlets |
8 IEC 320 C13
2 IEC Jumpers |
|
| curve equation |
Efficiency
|
|
| curve load maximum |
100 %
|
|
| curve X-axis maximum |
100 %
|
|
| curve X-axis minimum |
0 %
|
|
| curve X-axis title |
Load
|
|
| curve X-axis units |
Percentage
|
|
| curve Y-axis maximum |
100 %
|
|
| curve Y-axis minimum |
50 %
|
|
| curve Y-axis title |
Efficiency
|
|
| curve Y-axis units |
Percentage
|
|
| graph display |
1
|
|
| output voltage |
230 V
|
|
| Maximum configurable power in VA |
1000 VA
|
|
| rated power in VA |
1000 VA
|
| product certifications |
C-Tick
CE GOST VDE |
|
|---|---|---|
| standards |
EN 50091-1
EN 50091-2 |
| ambient air temperature for operation |
0…40 °C
|
|
|---|---|---|
| relative humidity |
0…95 %
|
|
| operating altitude |
0...10000 ft
|
|
| ambient air temperature for storage |
-15…45 °C
|
|
| Storage Relative Humidity |
0…95 %
|
|
| storage altitude |
0.00…15240.00 m
|
|
| acoustic level |
41 dBA
|
|
| heat dissipation |
100 Btu/h
|
|
| show note OP temperature |
No
|
| battery type |
Lead-acid battery
|
|
|---|---|---|
| number of battery filled slots |
0
|
|
| number of battery free slots |
0
|
|
| Battery recharge time |
3 h
|
|
| number of battery replacement quantity |
1
|
|
| additional information |
Configurable for 220 : 230 or 240 nominal output voltage
|
|
| liquid value |
0
|
|
| battery curve |
Z
|
|
| battery charger power |
88 W rated
|
|
| Battery power in VAH |
264 VAh runtime
|
|
| battery life |
3…5 year(s)
|
|
| extended runtime |
0
|
| free slots |
1
|
|
|---|---|---|
| control panel |
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
|
|
| alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
|
| Emergency power off |
Optional
|
| Surge energy rate |
320 J
|
|
|---|---|---|
| noise suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
| Brand | APC |
|---|---|
| Warranty | 1 Year Manufacturer |
| Shipping | Same Day From Lahore |
