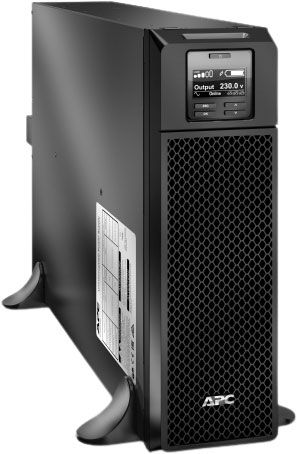

APC Srt5000xli Smart UPS

Rs 364,999.00
In stock
Presentation High density, double-conversion on-line power protection with scalable runtime.
Lead time Usually in Stock
Run time for load
Min-max: 450-4500 W
3min 59s
Max. Capacity Used
100 %
Main Input Voltage 230 V
Other Input Voltage 220 V
240 V
Main Output Voltage 230 V
Other Output Voltage 220 V
240 V
rated power in W 4500 W
Rated power in VA 5000 VA
output connection type 6 IEC 60320 C13
2 IEC Jumpers
4 IEC 60320 C19
Battery type Lead-acid battery
Provided equipment CD with software
Communication cable
Documentation CD
Installation guide
Removable support feet
Temperature probe
USB cable
Warranty card
Web/SNMP management card
product web sub-family High density
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
Colour Black
Height 43.2 cm
Width 13 cm
Depth 71.94 cm
Net weight 54.43 kg
Mounting location Front
Mounting preference No preference
Mounting mode Rack-mounted with kit
Two post mountable 0
USB compatible Yes
Network frequency 40...70 Hz auto-sensing
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Input voltage limits 100...275 V adjustable (half load)
Maximum configurable power in W 4500 W
Harmonic distortion Less than 2 %
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Crest factor 3 : 1
UPS type Double conversion online
Wave type Sine wave
bypass type Internal bypass (automatic and manual)
Maximum configurable power in VA 5000 VA
Product certifications CE
Marking CE Mark
Standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
heat dissipation 931 Btu/h
IP degree of protection IP20
Batteries & Runtime
Run Time
Number of battery filled slots 2
Number of battery free slots 0
Battery recharge time 1.5 h
Number of battery replacement quantity 1
Battery voltage 192 V
Battery charger power 560 W rated
Battery power in VAH 845 VAh runtime
Battery life 3…5 year(s)
Replacement battery APCRBC140
Battery option SRT192BP 1 2535 VAh
SRT192BP 2 4225 VAh
SRT192BP 3 5915 VAh
SRT192BP 4 7605 VAh
SRT192BP 5 9295 VAh
SRT192BP 6 10985 VAh
SRT192BP 8 14365 VAh
SRT192BP 10 17745 VAh
Extended runtime 1
Communications & Management
Free slots 1
Preinstalled device Network management card 3 with environmental monitoring
Alarm Audible and visible alarms : prioritized by severity
Emergency power off Yes
Surge Protection and Filtering
Surge energy rate 480 J
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 33 cm
Package 1 Width 61 cm
Package 1 Length 96 cm
Package 1 Weight 63.6 kg
Warranty1 Year Manufacturer
ShippingSame Day From Lahore
