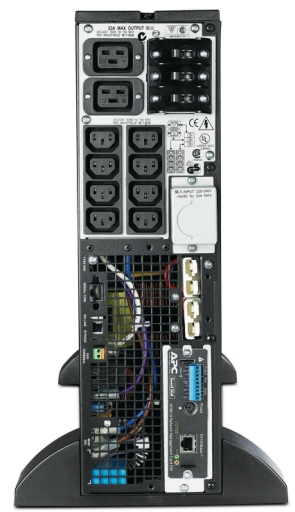

APC Smart RT 5000VA UPS

Features

Max. Capacity Used

100%

Output power capacity

3.5kWatts / 5.0kVA

Rack Height

3U

Output Connections

(2) IEC 60320 C19 (Battery Backup)

(4) IEC Jumpers (Battery Backup)

(8) IEC 60320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

Hard wire 3-wire

APC Smart-UPS RT 5000VA, 230V, 8x IEC 60320 C13 & 6x IEC Jumpers & 2x IEC 60320 C19 outlets

High density, double-conversion on-line power protection with scalable runtime.

Includes: CD with software, User manual, Web/SNMP management card

Smart-UPS On-Line Features & Benefits

Adaptability

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.

Availability

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Scalable runtime

Allows additional run time to be quickly added as needed.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Manageability

Serial connectivity

Provides management of the UPS via a serial port.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

LED status indicators

Quickly understand unit and power status with visual indicators.

Intelligent Card Slot

Customize UPS capabilities with management cards.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

Marketing features

Avoids costly power problems by keeping your IT equipment and data protected and available .

Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Save time with easy and convenient remote/network accessibility.

Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Low operating and maintenance costs with proven reliability and intelligent battery management .

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Protection

Cold-start capable

Provides temporary battery power when the utility power is out.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

Serviceability

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Audible alarms

Provides notification of changing utility power and UPS power conditions

Product Distribution

United Arab Emirates, Afghanistan, Belgium, Czech Republic, Germany, Algeria, Spain, Fiji, Greece, Hong Kong, Croatia, Hungary, Indonesia, Israel, Italy, Cambodia, South Korea, Morocco, Myanmar, Mexico, Malaysia, Nigeria, Peru, Portugal, Romania, Russia, Singapore, Slovenia, Slovakia, Turkey, Vietnam, South Africa

Technical Specifications

Output

Max Configurable Power (Watts)

3.5kWatts / 5.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

92.0 %

Output Voltage Distortion

Less than 3 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

50/60 Hz +/- 5 Hz Auto-sensing

Input voltage range for main operations

160 - 280V

Efficiency at Full Load

92.0 %

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Included Battery Modules

2

Typical recharge time

2.5hour(s)

Replacement Battery

APCRBC140

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Battery Charge Power (Watts)

382 Watts

Extendable Run Time

1

Runtime

View Runtime Graph

Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot

Pre-Installed SmartSlot™ Cards

AP9631

Control panel

LED status display with load and battery bar-graphs and on line : on battery : replace battery : overload and bypass indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Surge Protection and Filtering

Surge energy rating

555Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

432MM, 43.2CM

Maximum Width

130MM, 13.0CM

Maximum Depth

660MM, 66.0CM

Net Weight

54.43KG

Shipping weight

63.64KG

Shipping Height

347MM, 34.7CM

Shipping Width

603MM, 60.3CM

Shipping Depth

980MM, 98.0CM

Color

Black

Master Carton Units

1.0

Units per Pallet

6.0

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 (Non-condensing) %

Operating Elevation

0 - 3048meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95 (Non-condensing) %

Storage Elevation

0 - 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

1057.0BTU/hr

Protection Class

IP20

Conformance

Approvals

C-Tick, CE, EN 50091-1, EN 50091-2, EN 55022 class A, EN 60950, EN 61000-3-2, GOST, UL 1778, VDE
