Samsung 16Channel 8 IP66 With 1TB

AvailabilityIn stock
Rs 115,499

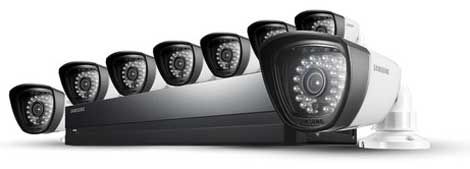

The SDS-P5082 16-Channel 1TB HDD DVR with Eight Day/Night Cameras from Samsung gives you the basic components for setting up a comprehensive analog surveillance system. A 1TB HDD comes installed, and an eSATA port on the back enables memory expansion or high-speed backup. Four audio-in channels can accept input from microphone-equipped cameras or external mics, while a single audio-out channel lets you wire an external speaker. HDMI and VGA ports provide simultaneous outputs for more monitoring options. The system utilizes H.264 video compression for efficient bandwidth usage that enables smooth live-view streaming over the Internet. Multiple recording options allow you to tailor the surveillance system to your needs.

To go with the DVR are eight cameras. Each camera has a 1/3" CMOS image sensor with a 3.8mm, f/2.0 fixed lens to capture video in up to 720TVL resolution. The housing is IP66 rated to be dust and weatherproof for outdoor installation. 28 IR LEDs provide a night vision range of up to 82' for day and night coverage. 60' of pre-terminated video cable comes with each camera to assist with installation.


16 Channels, BNC connectors
One 1TB SATA installed hard drive
One eSATA port for backup or external memory
HDMI and VGA outputs with simultaneous video output
RS-485 terminal for PTZ camera, Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, VICON, GE protocols
Four audio line-in and one line-out with G.711 compression
Wire audio-equipped cameras or external mics and speaker
One front and one rear USB ports for accessories or thumb drives
Control system via OSD with mouse, the included IR remote, or via remote access


1920x1080 full HD display resolutions
Multiple display options: 1, 4, 6, 8, 9, 13, 16, Sequential, and Picture-in-Picture
Privacy masking: Block sensitive areas from live-view and playback


Up to 960x480 resolution at 30 fps per channel
H.264 compression for efficient bandwidth and HDD use
Manual recording: Manually turn recording on/off
Schedule recording: Recording starts/stops at specified day and time. Combine with Continuous or Event modes
Time lapse recording: Selectable from 1 to 30 fps


Video loss: Triggers an email notification
Motion detection: Email notification and/or recording begins when motion is detected with ten adjustable sensitivities
Tampering: Email notification and/or recording begins if camera is tampered with
Pre-alarm: Captures 5 seconds before an event is tripped for full coverage
Post-alarm: Continues to record for up to six hours
Post-alarm intervals: 5, 10, 20, 30 seconds. 1, 3, 5, 10, 20 minutes. 1, 2, 3, 4, 5, 6 hours

Users / Remote Access

One administrator, ten groups, ten users per group
Administrator has full permissions for all features and functions
Groups have selectable access by function
Remote access compatible with PC, Mac, Android, and iOS operating systems
Supported browsers: Internet Explorer, Firefox, Chrome, and Safari
Free mobile app for Android and iOS devices
Network live-stream with H.264 compression at 4CIF, 2CIF, or CIF
Maximum of ten remote users
Automatic email notifications for select events

Eight Included Outdoor Day/Night Cameras

1/3" CMOS image sensor
3.8mm, f/2.0 fixed lens with 80° diagonal field of view
Up to 720 TVL resolution
960H widescreen aspect ratio
28 IR LEDs with night vision up to 82'
IP66 weather-resistant and dust proof housing
Eight 60' pre-terminated cables for installation

720TVL High Resolution Cameras
The 720TVL cameras provide video with brighter colors and more detail. The 80 degree viewing angle provides a wide field of view to cover the area you need monitoring. The through mount design does not expose any part of the cable and protects from vandalism and allows for a clean and smooth installation. When mounting the cameras the innovative ball joint lets you position and aim the camera quickly easily and securely. The cameras are also IP66 compliant which means that they are dust and water resistant and will withstand the weather conditions.

16-Channel DVR with 1TB HDD
960x480 Recording Resolution at 30fps
H.264 Compression, H960 Aspect Ratio
Four Audio-In and One Audio-Out
Motion, Scheduled, Continuous Recording
Eight Outdoor-Rated Day/Night Cameras
720TVL Resolution, 960H Aspect Ratio
28 IR LEDs with 82' Night Vision Range
IP66 Rated, Dust and Weatherproof
60' Video Cable per Camera Included


Digital Video Recorder
Operating SystemLinux
Signal SystemNTSC / PAL
Recording ResolutionNTSC:
960 x 480, 720 x 480, 704 x 240, 352 x 240

960 x 576, 704 x 576, 704 x 288, 352 x 288
Recording RateNTSC: Up to 480 fps, total
PAL: 400 fps, total
Display ResolutionHDMI: 1920 x 1080, 1280 x 1024, 1280 x 720
VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
Display RateNTSC: 480 fps, total
PAL: 400 fps, total
Storage1 x 7 TB HDD
Switching MethodOSD with USB mouse, IR remote control, remote access
Display Modes1, 4, 6, 8, 9, 13, 16, Sequential, PIP
Video InputsBNC
Video Outputs1 x HDMI port
1 x VGA port
Audio Inputs4 x RCA ports
Audio Outputs1 x RCA port
Audio CompressionG.711
PTZ Control1 x RS-485 terminal
Supported protocols: Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, VICON, GE
USB Port1 x front panel
1 x rear panel
Connections1 x eSATA port
Alarm I/ONone
Network Interface1 x RJ-45 10/100 Ethernet port
Power RequirementsPower adapter:
Input: 100 - 240 VAC, 50/60 Hz
Output: 12 VDC
Power Consumption36 W max, with one HDD installed
EnvironmentalOperating temperature: 32 to 104°F (0 to 40°C)
Humidity: 20 to 85% relative
Dimensions12.4 x 8.8 x 2.1" (31.5 x 22.4 x 5.2 cm)
Weight3.7 lb (1.7 kg), with HDD

More Information
Warranty7 Day Replacement
