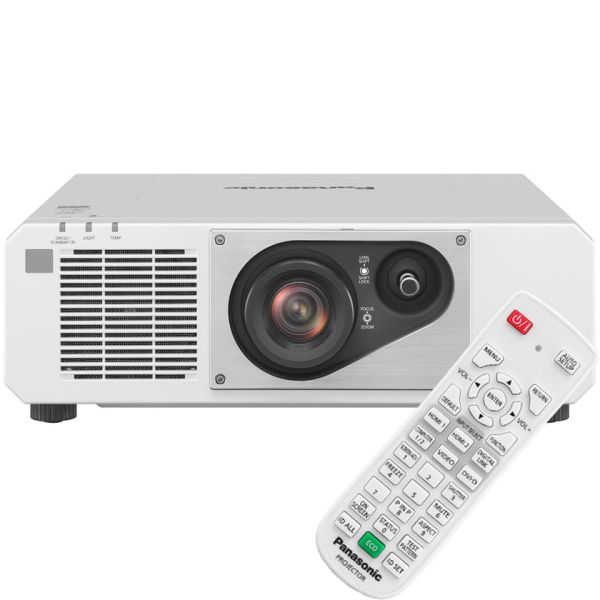

Panasonic PT-RZ570 DLP Projector

PT-RZ570 - Premier DLP Images Meet SOLID SHINE Laser Power

Big, bold, pin-sharp images don’t fade away fast with SOLID SHINE Laser. Image quality and endurance easily outpaces that of competitive lamp-based projectors, with almost no maintenance required. Add a suite of features that makes daily operation a breeze and you get the picture: the PT-RZ570 Series is a smart choice for beautifully clear and bright images in classrooms, boardrooms, or office meeting spaces.

PT-RZ570W (White) PT-RZ570B (Black)

5,400 lm (Center) / 5,200 lm	WUXGA (1920 x 1200)
20,000:1	Screen Adjustment

Note: This model is available in both white and black cabinet color.

SOLID SHINE Laser Technology

Reproducing Full-Spectrum Color with 1-Chip DLP™ SOLID SHINE Laser

With next-generation DLP™ technology delivering high-resolution detail, dual laser modules for high brightness, Quartet Color Harmonizer to reduce energy loss from the light source, and robust heat-resistant phosphor wheel, Panasonic’s 1-Chip DLP™ SOLID SHINE Laser system produces scintillating images with unfailing reliability.

Rich Color Enhancer

Rich Color Enhancer offers a Dynamic Mode setting to increase image brightness, or Graphic Mode/Standard Mode, which adjusts color-wheel timing to produce deeper, richer colors in rooms where maximum brightness is unnecessary.

Superior White Balance and Color Reproduction

Quartet Color Harmonizer wheel mechanism captures a wider color space than comparable projectors, allowing white to be reproduced more realistically on screen. Conventional projectors can’t achieve an accurate white balance, so images can appear with a distracting greenish cast. Not the case with the Panasonic 1-Chip DLP™ SOLID SHINE Laser projectors.

Lasting Picture Quality

Dustproof Optics Extend Longevity

Hermetically sealed laser modules and a refined air-intake system work to extend life and maintain picture quality in dusty locations. SOLID SHINE Laser products are tested against more severe guidelines than other projectors for stable operation in dusty environments containing 0.150 mg of particulate matter per cubic meter*.

* Dustproof tests are conducted to confirm operational effectiveness under conditions with 0.15 mg/m3 of particulate matter (based on tests by the American Society of Heating, Refrigerating, and Air-Conditioning Engineers [ASHRAE], and the Japanese Building Maintenance Association). Measurements are made using acceleration tests.

Efficient Cooling System

Heat-pipe cooling for the laser light source and a heavy-duty heat sink for the DMD module keep images crisp and bright while reducing fan speed, lowering noise levels and preventing distractions in quiet classrooms.

Dynamic Light Control for High Contrast

Dynamic Light Control directly modulates laser output to achieve high contrast with less power consumption. Digitally controlled frame-by-frame scene-linking modulation ensures highly precise adjustment of light output, while accurate contrast is delivered even when bright and dark scenes frequently interchange.

Detail Clarity Processor 3

This unique Panasonic circuitry optimizes the sharpness of each image based on information gathered from four frequency bands of the video signal. The resulting images are expressed with natural, convincing realism.

Daylight View Basic

Panasonic’s Daylight View Basic technology achieves sharp, easily viewed images by enhancing detail, particularly in dark areas of the image that are normally difficult to see in brightly lit rooms. A built-in sensor measures ambient light while Daylight View Basic adjusts halftone color and brightness according to the surrounding level of illumination.

Practical Functions

Free 360-degree Installation

SOLID SHINE Laser technology enables free 360-degree installation through any axis. Together with powered lens shift and a wide range of optional lenses, the projector can be mounted in any way desired without picture distortion temporarily or in permanent applications.

Single-Cable DIGITAL LINK Connection

DIGITAL LINK transmits uncompressed video, audio*1, and control commands through a single CAT 5e or higher STP cable for distances of up to 150 m (492 ft)*2. Optional DIGITAL LINK Switcher or Digital Interface Box further simplifies installation, reduces cabling and associated costs, and enhances reliability.

*1 Audio transmission depending on model’s audio capability.

*2 150 m (492 ft) transmission available only with ET-YFB200G DIGITAL LINK Switcher for signals up to 1080p.

Early Warning Software ET-SWA100 Series (Optional)

Early Warning Software monitors the status of projectors and displays connected to an intranet, and informs the operator when an abnormality is detected or predicted, or when there are symptoms of trouble. This minimizes downtime to provide more stable operation.

Wide-Range 2.0x Zoom and Lens Shift

The inclusion of a versatile 2x zoom and wide-range lens shift grants flexibility for installation in different rooms and for projection on different screen sizes.

Silent Operation Mode

Technologies combine to keep noise levels down in Silent Mode so the sound of the cooling fan is hardly noticeable. This is made possible by an efficient cooling system, reduction of light output to limit fan speed, and color-wheel speed control to prevent excessive noise.

Auto Screen Image Rotation

Images are automatically* rotated depending on installation orientation—upside down on the ceiling or set on a table—using a built-in angle sensor.

* Manual setting also available via setup menu.

ECO Management System

Push the ECO button on the remote control to set up Eco Management functions, including automatic brightness reduction in dim ambient lighting conditions, and power consumption reduction when no input signal is detected.

PT-RZ570
Power supply	AC 100–240 V, 50/60 Hz
Power consumption*1	500 W (520 VA, 100 V AC) (0.5 W with Standby Mode set to Eco*2, 10 W with Standby Mode set to Normal, 22 W with Standby Mode in Audio Setting set to ON and Quick Startup function disabled, 50 W with Quick Startup function enabled); 375 W (Normal Mode), 350 W (Eco or Silent Mode), 40 W (shutter closed) [Picture Mode: Standard, Dynamic Contrast: ON]
DLP™ chip
Panel size	17.0 mm (0.67˝) diagonal (16:10 aspect ratio)
Display method	DLP™ chip x 1, DLP™ projection system
Pixels	2,304,000 (1920 x 1200) pixels
Lens	2.0 x manual zoom (throw ratio: 1.46–2.94:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm
Light source	Laser diode (Class 1) (Class 3R for North America), Light source life: 20,000 hours at half luminance (Normal Mode, Temperature: 35 °C [95 °F], altitude: 700 m [2,297 ft], Dust: 0.15 mg/m3)
Screen size (diagonal)	1.02–7.62 m (40–300˝), 16:10 aspect ratio
Brightness	5,400 lm (Center)*4/ 5,200 lm*3*4
Contrast*3	20,000:1 (Full On/Full Off, Dynamic Mode and Dynamic Contrast: ON)
Resolution	1920 x 1200 pixels
Supported RGB signal	XGA–WUXGA
Supported video signal	NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i
Optical axis shift (from center of screen)
Vertical	-44 %, +64 % (manual)
Horizontal	-27 %, +34 % (manual)
Keystone correction range	Vertical: ±40 °, horizontal: ±20 °, Up to a total of ±60 ° during simultaneous horizontal and vertical correction
Installation	Ceiling/floor, front/rear, 360-degree free installation
Cabinet materials	Molded plastic
Dimensions (W x H x D)	498 x 168*5x 492 mm (19 5/8˝ x 6 5/8˝*5x 19 3/8˝)
Weight*6	Approximately 16.3 kg (35.9 lbs)
Operation noise*3	28 dB (Silent Mode), 33 dB (Normal/Eco Mode)
Operating environment	Operating temperature: 0–45°C (32–113°F)*7, operating humidity: 10–80 % (no condensation)
Applicable software	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software
TerminalsPT-RZ570

*1 Operating temperature: 25 °C (77 °F), altitude: 700 m (2,297 ft), IEC627087: 2008 Broadcast Content.

*2 When Standby Mode is set to Eco, network functions such as power on over LAN will not operate.

*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

*4 With operation mode set to Normal.

*5 With legs at shortest position.

*6 Average value. May differ depending on the actual unit.

*7 The operating environment temperature should be between 0 °C (32 °F ) and 40 °C (104 °F ) when the projector is used at altitudes between 1,400 m (4,593 ft) and 4,200 m (13,780 ft) above sea level. When [PROJECTOR SETUP] menu > [ECO MANAGEMENT] > [OPERATING MODE] is set to [ECO] or [SILENT], the projector cannot be used at an altitude of 2,700 m (8,858 ft) or higher above sea level. When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level and the operating environment temperature is 35 °C (95 °F) or higher, light output may be reduced to protect the projector. When using the projector at an altitude between 2,700 m (8,858 ft) and 4,200 m (13,780 ft) and the operating environment temperature is 25 °C (77 °F) or higher, light output may be reduced to protect the projector.
