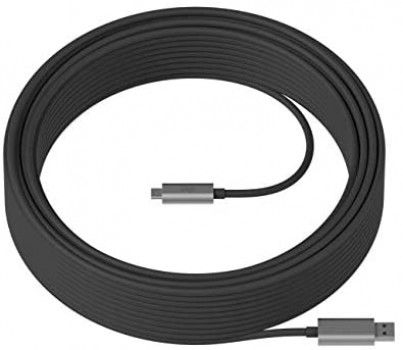

Logitech 10M Strong USB Cable for Group Cam

Logitech 10M Strong USB Cable for Group Cam

With up to 15x the reach of ordinary USB 3.x cables, Logitech Strong USB lets you separate USB peripherals and a host PC by up to 45 meters (147.6 ft). These active optical cables are plenum-rated and Eca certified for commercial installation in walls, above ceilings, through raceways, and within standard ¾” conduit.

EXTENDED REACH:

Available in 10, 25, and 45 meter lengths, Logitech Strong USB lets you deploy a self-powered USB device or hub at a significant distance from its host PC. Locate devices like the  touch controller for easy access, but hide the host PC in a cabinet, closet, or behind a display.

RELIABLE STRENGTH:

Unlike ordinary USB cables that can break when subject to pulling and crushing forces, Logitech Strong USB is built to last. With 200 newtons of tensile strength and a 1000 kg crush load, Logitech Strong USB stands up to commercial deployments in walls, above ceilings, and through conduit.

FAST AND COMPATIBLE:

As an active optical cable, Logitech Strong USB delivers up to 10 Gbps for devices with their own power supplies, including. Compliance with the USB 3.2 Gen 2 specification assures backward compatibility with USB 2.0, 3.0, 3.1, and 3.2 devices and computers.

Specifications:

DIMENSIONS:

Available Lengths:

10 m (32.8 ft)

25 m (82 ft)

45 m (147.6 ft)

SYSTEM REQUIREMENTS:

Compatibility:

USB 2.0, 3.0, 3.1, and 3.2

Self-powered USB devices and USB hubs with external power supplies, including Logitech MeetUp, Logitech Rally Camera, and Logitech Tap.

Note: As an active optical cable, Logitech Strong USB does not deliver power to USB bus-powered devices such as webcams and speakerphones.

Certifications:

Plenum Rated

Eca/IEC 60332-1-2 Compliant

USB 3.2 Gen 2 active optical cable

USB Type A (male) to USB Type C (male)

Throughput: SuperSpeed USB 10 Gbps

Tensile strength: 200 newtons

Crush load: 1000 kg

Dynamic bend radius (minimum): 0.98 in (25 mm)

Conduit Diameter (minimum): 0.75 in (19 mm)

PACKAGE CONTENTS:

Logitech Strong USB

USB-C pigtail extension cable: 152 mm (6 in)

Documentation

PART NUMBER:

10 Meter: 939-001799

25 Meter: 939-001802

45 Meter: 939-001805
