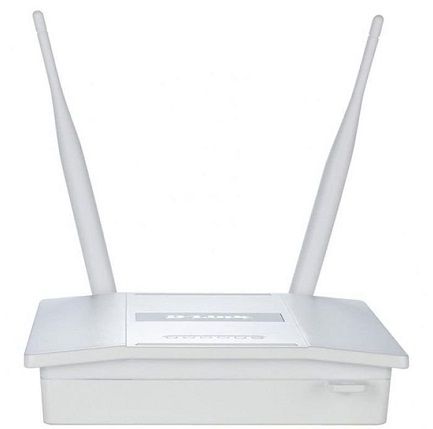

DAP-2360
802.11n Plenum-rated PoE Access Point ideal for upgrading wireless network capacity in high traffic indoor areas such as airports, shopping centers, and campuses.
Easy to manage with D-Link’s free centralized management software-based solution
Throughput of up to 300 Mbps for faster downloads and instant communication
Supports Power over Ethernet (802.3af) for simpler installation with less cable clutter
Plenum-rated metal chassis allows discreet placement in ceiling space to optimize efficiency
Clean-line design, ideal for subtle visibility when wall mounted (mounting hardware included)
Supports up to 8 VLANs for enhanced network management and multiple SSID setups
Wireless network supports both Personal and Enterprise versions of WPA and WPA2
Gigabit LAN port for high-capacity backhaul to the wired network
Supports multiple AP modes to ensure performance optimization based on network needs
MAC Address Filtering and WLAN Partitioning ensure ultimate control of network access
Works as a standalone AP or as part of a centralized, scalable multi-device deployment
Free Nuclias Connect Remote Centralized Management Software:
D-Link’s Nuclias Connect is a centralized management and analytics solution that brings convenience, control, customizability and cost-effective scaling to SMB (small-medium-sized business) networks. It enables network monitoring, management, and device configuration through a single, easy-to-use software interface.
Multi-Mode Makes the Most of your Network Capabilities:
In order to achieve optimal network performance, the DAP-2360 has several operational modes tailored to best fit the individual needs of your network. Access Point, Wireless Client, WDS (Wireless Distribution System), and WDS with Access Point modes allow for flexible, customizable deployment whatever your requirements.
Take a Load Off and Let Your AP do the Hard Work:
The DAP-2360’s Load Balancing feature spreads the work load between two or more Access Points to get optimal resource utilization, throughput and response time, while Airtime Fairness helps distribute equal amounts of air time to each connected client. The result is a steady, consistent connection for each user – the perfect balancing act.
Rugged and Refined Industrial Design:
The DAP-2360 perfectly marries industrial grade materials with subtle, clean-line design. Its fresh white housing not only blends well into any indoor space but is Plenum-rated to industry standard fire and safety protection codes for safe placement in out-of-sight ceiling and air passageway spaces.
Make Every Second Count with Advanced Quality of Service:
The DAP-2360 not only delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in the 2.4 GHz band, but, Wi-Fi Multimedia (WMM™) support enhances your network’s Quality of Service (QoS) by cleverly prioritizing different types of traffic. With the use of QoS, WMM ensures that applications such as, audio, video and voice, that require better throughput and more performance are placed in order of high-to-low priority for an all-round smoother, uninterrupted Wi-Fi experience.
The Beating Heart of Your Network:
At the heart of your network is the DNH-100 Wireless Controller, or ‘The Hub’. It centralizes all aspects of your Access Points’ provisioning and management, allowing them to work together as a team. Features such as self-organizing, self-optimizing and self-healing keep the network performing at its peak.
Specifications:
Standards:
IEEE 802.11n
IEEE 802.11g
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3u
IEEE 802.3
Network Management:
Telnet – Secure (SSH) Telnet• Web Browser interface
HTTP – Secure HTTP (HTTPS)
SNMP Support
D-View Module – Private MIB
AP Manager II
AP Array
Security:
WPA™-Personal
WPA-Enterprise
WPA2™-Personal
WPA2-Enterprise
64/128-bit WEP
SSID Broadcast Disable
MAC Address Access Control
Rogue AP Detection
VLAN/SSID Support:
802.1q/Multiple SSID support up to 8
Quality of Service (QoS):
4 Priority Queues
WMM Wireless Priority
Wireless Frequency Range:
2.4GHz to 2.4835GHz
Operating Modes:
Access Point (AP)
WDS with AP
WDS/Bridge (No AP Broadcast)
Wireless Client
Dipole Antenna Gain:
5 dBi @ 2.4 GHz
Maximum Transmit Output Power:
26 dBm @ 2.4 GHz Dual Chain
LEDs:
Power
LAN
2.4GHz
Maximum Power Consumption:
9 Watts with PoE
8 Watts without PoE
Operating Voltage:
48VDC +/- 10% for PoE or 5V/2.5A
Temperature:
Operating: 32°F to 104°F (0°C to 40°C)
Storing: -4°F to 149°F (-20°C to 65°C)
Humidity:
Operating: 10% ~ 90% (Non-condensing)
Storing: 5% ~ 95% (Non-condensing)
Certifications:
FCC class B
IC
UL 2043
WiFi®
Weight:
1.69 lb (768g)
Dimensions (WxHxD):
6.5″ x 7.4″ x 1.5″ (166mm x 188mm x 37mm)
|
