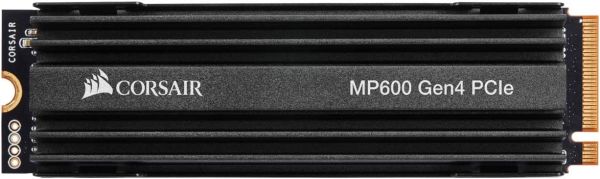

Corsair Force Series Gen.4 PCIe MP600 500GB NVMe M.2 SSD

Corsair Force Series Gen.4 PCIe MP600 500GB NVMe M.2 SSD



PCIE 4.0 (GEN4) TECHNOLOGY:

As a PCIe 4.0 SSD, the MP600 delivers incredible storage performance, delivering up to 10 times the sequential read and sequential write speeds of some SATA SSDs and up to 50 times the speed of some traditional HDDs. The MP600 is also fully backwards compatible with current PCIe 3.0 platforms.



LOWER TEMPERATURES, HIGHER PERFORMANCE:

The MP600 is equipped with a high surface area aluminum heatsink, helping to maintain its performance even under heavy load.



HIGH-DENSITY 3D TLC NAND MEMORY:

Provides an ideal mix of performance, endurance, and value to keep your drive performing at its best for years, with outstanding longevity up to 3,600TB Written*.



M.2 2280 FORM FACTOR:

Easily fits directly into your new AMD X570 chipset-based motherboard, freeing up drive space in your PC to provide better airflow and easier cable routing.



READY FOR RYZEN:

CORSAIR is a proud launch partner for AMD's 3rd generation of Ryzen processors. The MP600 is engineered to help you get the full benefit of PCIe 4.0 speed right out of the gate with your new Ryzen-based PC.

Specifications:

SSD Unformatted Capacity:

500GB



SSD Smart Support:

Yes



Weight:

0.034kg



SSD Interface:

PCIe Gen 4.0 x4



SSD Max Sequential Read CDM:

Up to 4,950MB/s



SSD Max Sequential Write CDM:

Up to 2,500MB/s



Max Random Write QD32 IOMeter:

Up to 550k IOPS



Max Random Read QD32 IOMeter:

Up to 420k IOPS



Power Consumption active:

6.3W Average



Power Consumption Inactive:

1.1W



Form Factor:

M.2 2280



Dimensions:

80mm x 23mm x 15mm



Application Consumer:

Client



Weight:

0.034



NAND Technology:

3D TLC NAND



Voltage:

3.3V, +/- 5%



Endurance:

850 TBW



TBW:

850

MTBF:

1,700,000 Hours



DEVSLP:

PS4 < 1.65mW



Encryption:

AES 256-bit Encryption



Storage Temperature:

-40°C to +85°C



SSD Operating Temperature:

0°C to +70°C



SSD Shock:

1500 G



Storage Humidity:

93% RH (40° C)



Operating Humidity:

90% RH (40° C)



Vibration:

20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
