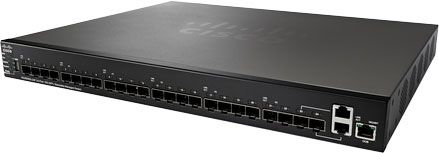

Cisco SMB SG350XG-24F-K9-EU 24-port Ten Gigabit SFP+ Swithces
The Cisco 350X series Stackable Managed Switches are a line of stackable managed Ethernet switches that provide the rich capabilities you need to support a more demanding network environment at a very affordable price. The Cisco 350XG-24 models provide 24 10 Gigabit Ethernet 10GBase-T copper ports, providing a solid foundation for your current business applications as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage without a large IT staff. The 350X platforms are Cisco's most cost-effective platforms with 10 Gigabit SFP+ and stacking.
Cisco 350X Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 350X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network.
A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operate as a single entity constituting all the ports of the stack members. The switches also protect your technology investment with an enhanced warranty, dedicated technical support, and the ability to upgrade equipment in the future. Overall, the Cisco 350X Series provides the ideal technology foundation for a growing business.
- Layer 3 - Managed
- 22 x XG SFP+ slots + 2 x combination XG copper/SFP+ plus 1 x GE OOB management
- Desktop or rack-mountable - 1U
- Stackable
Performance | |
---|---|
Processor frequency | 800 MHz |
Flash memory | 256 MB |
Noise level | 36.4 dB |
Built-in processor | True |
Firmware upgradeable | True |
Internal memory | 512 MB |
Mean time between failures (MTBF) | 121050 h |
Physical stacking (units) | 4 |
Power | |
Power consumption (typical) | 77.5 W |
Power supply included | True |
Number of power supply units | 1 |
AC input voltage | 100 - 240 V |
AC input frequency | 47/63 Hz |
Data transmission | |
Switching capacity | 480 Gbit/s |
Jumbo frames | 10000 |
Jumbo frames support | True |
Number of queues | 8 |
MAC address table | 32000 entries |
Throughput | 357.12 Gbit/s |
Packet buffer memory | 2 MB |
Throughput | 357.12 Mpps |
Number of static routes | 8000 |
Number of IP interfaces | 256 |
Operational conditions | |
Storage relative humidity (H-H) | 10 - 90 % |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -20 - 70 °C |
Heat dissipation | 172 BTU/h |
Network | |
Cable types supported | Cat6e |
Cable types supported | Cat7 |
Cable types supported | Fiber |
Cable length detection | True |
MAC address auto-learning supported | True |
Flow control support | True |
Port mirroring | True |
Link aggregation | True |
Broadcast storm control | True |
Copper ethernet cabling technology | 10BASE-T |
Copper ethernet cabling technology | 10GBASE-T |
Copper ethernet cabling technology | 100BASE-TX |
Copper ethernet cabling technology | 1000BASE-T |
Rate limiting | True |
IP routing | True |
Virtual LAN features | Private VLAN |
Virtual LAN features | Tagged VLAN |
Virtual LAN features | Port-based VLAN |
Number of VLANs | 4096 |
Spanning tree protocol | True |
Head-of-line (HOL) blocking | True |
10G support | True |
Networking standards | IEEE 802.1D |
Networking standards | IEEE 802.1Q |
Networking standards | IEEE 802.1p |
Networking standards | IEEE 802.1s |
Networking standards | IEEE 802.1w |
Networking standards | IEEE 802.1x |
Networking standards | IEEE 802.3 |
Networking standards | IEEE 802.3ab |
Networking standards | IEEE 802.3ad |
Networking standards | IEEE 802.3af |
Networking standards | IEEE 802.3at |
Networking standards | IEEE 802.3az |
Networking standards | IEEE 802.3u |
Networking standards | IEEE 802.3x |
Networking standards | IEEE 802.3z |
VLAN support | True |
Security | |
Loop protection | True |
BPDU filtering/protection | True |
IP-MAC-Port binding | True |
Authentication | Port-based authentication |
Security algorithms | 802.1x RADIUS |
Security algorithms | HTTPS |
Security algorithms | SSH |
Security algorithms | SSL/TLS |
Access Control List (ACL) | True |
DHCP features | DHCP server |
DHCP features | DHCP client |
SSH/SSL support | True |
IGMP snooping | True |
Management features | |
ARP inspection | True |
Switch layer | L3 |
Quality of Service (QoS) support | True |
Web-based management | True |
Switch type | Managed |
Design | |
Reset button | True |
Certification | UL (UL 60950), CSA (CSA 22.2), CE, FCC15 (CFR 47) A |
Stackable | True |
Form factor | 1U |
Rack mounting | True |
Number of fans | 4 fan(s) |
Product colour | Black |
LED indicators | Y |
Packaging data | |
Rack mount kit | True |
Cables included | AC |
Cables included | Serial |
Quick start guide | True |
Ports & interfaces | |
SFP+ module slots quantity | 24 |
Gigabit Ethernet (copper) ports quantity | 1 |
Fiber optic connector | SFP |
USB 2.0 ports quantity | 1 |
ExpressCard slot | False |
Console port | RJ-45 |
Basic switching RJ-45 Ethernet ports quantity | 2 |
Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
Multicast features | |
Multicast support | True |
Number of multicast groups filtered | 4000 |
Protocols | |
Management protocols | TFTP, SNTP, Telnet, SNMP |
Weight & dimensions | |
Width | 440 mm |
Depth | 350 mm |
Height | 44 mm |
Weight | 4160 g |
Brand | Cisco |
---|---|
