Asus ProArt B660 Creator D4 LGA 1700 ATX Motherboard

SKU
U57553

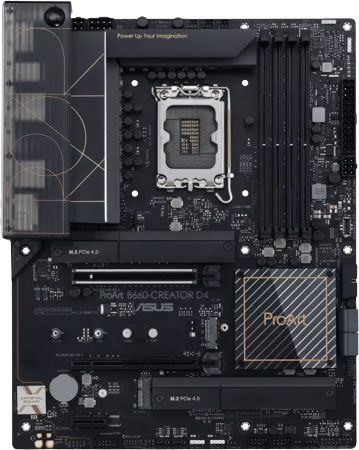

main product photo
Asus
Rs 49,999.00
Out of stock
Notify me when the price drops
Notify me when this product is in stock
Category: Motherboard

Fast Delivery
Same Day in Lahore

7 Days Replacement
If goods have problems

Secure Payment
100% secure payment

24/7 Support
Dedicated support

Special Offers

Haier 18HFCS 1.5 Ton Inverter Air Conditioner

Haier 18HFCS 1.5 Ton Inverter Air Conditioner

Special Price Rs 139,999.00 was Rs 154,999.00
Samsung Galaxy A34 5G 8GB 256GB

Samsung Galaxy A34 5G 8GB 256GB

Special Price Rs 94,999.00 was Rs 114,999.00
Vivo V30 5G 12GB 256GB

Vivo V30 5G 12GB 256GB

Special Price Rs 127,999.00 was Rs 139,999.00
HP Pavilion 15 EH3050AU AMD Ryzen 7 7730U 16GB 1TB SSD

HP Pavilion 15 EH3050AU AMD Ryzen 7 7730U 16GB 1TB SSD

Special Price Rs 201,999.00 was Rs 237,999.00
Realme Note 50 4GB 64GB

Realme Note 50 4GB 64GB

Special Price Rs 22,999.00 was Rs 25,999.00
Tecno Spark 20 Pro Plus 8GB 256GB

Tecno Spark 20 Pro Plus 8GB 256GB

Special Price Rs 53,499.00 was Rs 59,999.00

Your Powerhouse for Creativity

ProArt B660-Creator D4 is an enhanced motherboard designed for intensive content-creation workloads like 3D rendering and 4K/8K video editing. It unleashes the performance of 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.

Intel Core, Intel Chipset B660, Windows 11 Ready, Adobe Creative Cloud 3 months free

Spec Overview

Connectivity

Performance

Cooling

DIY FriendlySide-angle view of ProArt B660-Creator D4 detailing connectivity options.DisplayPort input

1 x HDMI 2.1 (4K@60Hz)

4 x USB 2.0

4 x USB 3.2 Gen 1

1 x USB 3.2 Gen2 Type-C

with DisplayPort Alt Mode

2.5 Gb & 1 Gb Ethernet

5 x Audio jacks

1 x USB 3.2 Gen 2x2 Type-C front-panel connector (60 W PD / QC 4+)

1 x USB 3.2 Gen 1 header

4 x SATA 6 Gbps

M.2 slot (Key E)

2 x USB 2.0 connectors

3 x Aura addressable gen 2 headers

1 x Aura RGB header

Thunderbolt header

Comprehensive Connectivity

An array of powerful I/O ports — including 2.5 Gb and 1 Gb Ethernet ports and three M.2 slots — enables quick data transfers and extensive storage options.

USB Ports

Thunderbolt 4 Support

M.2 Storage

Networking

M.2 Slot (Key E)

Side-angle view of the back panel, showing USB-C DisplayPort port.
USB-C DisplayPort (DP Alt Mode)

This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.

*This functionality requires the bundled DP-to-DP cable to be connected from an installed graphics card to the DP IN port located on the rear I/O panel of the motherboard.Top view of USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+ on ProArt B660-Creator D4.

USB 3.2 Gen 2x2 Type-C Front-Panel Connector with Quick Charge 4+

A USB 3.2 Gen 2x2 connector boosts Type-C data transfers with speeds of up to 20 Gbps. The connector also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.

Next-Gen Performance

With tailored CPU power delivery and support for high-performance memory, ProArt B660-Creator D4  easily handles the demands of the latest 12th Gen Intel Core processors. It features an intelligent VRM design that’s rated for 50 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation and video editing.

Robust Power Delivery

PCIe 5.0 Ready

DDR4 Memory

Top view of the 12+1 power stages on ProArt B660-Creator D4.
Teamed power stagesTeamed power stages
Digi+ Power Control
ProCool power connector
Chokes & capacitors
Teamed power stages
Teamed power stages

12+1 power stages rated for 50 amps combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest 12th Gen Intel Core processors demand.

Digi+ Power Control

The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

ProCool power connector

The ASUS ProCool socket is built to exacting specifications to ensure flush contact with PSU power lines, enabling lower impedance and better heat dissipation.

Chokes & capacitors

Premium alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Optimized Cooling Design

Maintaining system stability under heavy loads is of paramount importance, so ProArt B660-Creator D4 features comprehensive cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems.

Heatsinks

Headers

Top view of the ProArt B660-Creator D4 with detail highlighting its cooling design.VRM heatsinks

Two VRM heatsinks are placed above the MOSFETs and chokes to further increase surface area for heat dissipation.

M.2 heatsinks

Two M.2 heatsinks cover three M.2 slots to keep M.2 SSDs at the optimal operating temperature for consistent performance and reliability.

Chipset heatsink

A dedicated chipset heatsink draws heat away to help ensure that temperatures stay within an optimal range.

Perfect for Content Creation

ProArt exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that enable a smoother workflow.

Industry-Leading Security

ProArt Creator Hub

CreationFirst

Two-Way AI Noise Cancelation

ASUS Control Center Express software offers advanced security management functions to protect the system and confidential data.


ProArt B660-Creator D4 makes it easy to manage USB ports.

USB port management

Enable or disable USB ports or set them to Read Only to prevent data leaks.

ProArt B660-Creator D4 can create a software blacklist.

Software blacklist

For added security, a software blacklist is available to help identify high-risk applications.

ProArt B660-Creator D4 can prevent unauthorized changes to system configuration.

Registry editor enabled/disabled

Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.

Trusted Stability

ProArt B660-Creator D4 is engineered and rigorously tested to offer superior quality, stability and compatibility ― all to ensure that it empowers creativity for years to come.

24/7
Reliability

168-hour

Durability Test

45°C

Ambient Temperature

80%

Relative Humidity

Extensive Compatibility Validation

520+

DDR4 compatibility

1000+

Compatible devices

800+

Validation hours

Details about the benefits of a free 3-month subscription to Adobe Creative Cloud.
20+ Adobe apps

Industry-leading apps including Photoshop®, Illustrator®, InDesign®, Spark and XD.

Adobe fonts

Access thousands of fonts easily within your Creative Cloud apps.

Behance

Find inspiration in the world’s largest creative community.

Creative Cloud libraries

Share assets across the team via apps and devices, so everyone’s in sync.

1 TB of cloud storage per user

Extra storage makes it easier for teams to share and manage creative assets.

BrandAsus
Warranty7 Day Replacement
