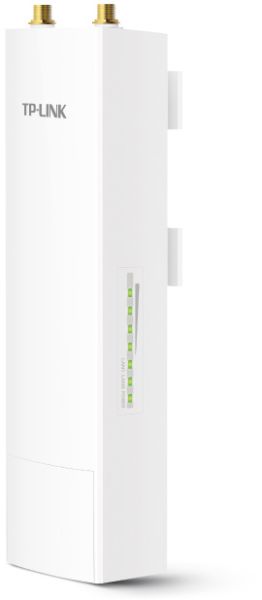

TP Link WBS510 - 5GHz 300Mbps Outdoor Wireless Base Station

SKU
N62019
TP Link
Rs 12,499.00
Out of stock

Broad operating frequency channels ensure less wireless interference
Wireless N speed up to 300Mbps
Selectable bandwidth of 5/10/20/40MHz
Adjustable transmission power from 0 to 27dBm/500mW
2 RP-SMA connectors for external MIMO antenna
Work with TP-LINK dish antenna for long-distance wireless data transfer up to 50+Km
1 10/100Mbps Ethernet port for passive PoE and 1 10/100Mbps Ethernet port for extended applications
TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PtMP applications
Centralized Management System – Pharos Control
Supports AP Router, AP Client Router, AP, AP Client, Multi-Bridge and Repeater Operation modes
Weatherproof enclosure, 15kV ESD and 6KV lightning protection








Access Where You Need It Most

TP-LINK’s 5GHz 300Mbps Outdoor Wireless Base Station is specifically designed to provide an effective solution for outdoor wireless networking applications. With its centralized management platform and high degree of flexibility, it is the ideal choice for providing point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage. The TP-LINK Outdoor Wireless Base Station pairs professional performance with user-friendly design, making it the perfect solution for both business and home users.







Long-Distance Wireless Data Transmission

Two external RP-SMA antenna interfaces allow the Outdoor Wireless Base Station to integrate seamlessly with TP-LINK's line of sector and dish antennas. Where long- distance wireless data transmission is necessary, the WBS510 can be paired with a TP-LINK dish antenna, allowing it to transfer data over distances of up to 50 km.








Easy Installation, No Tools Needed

Pharos Base Stations works seamlessly with TP-LINK dish and sector antennas to provide efficient PtP and PtMP data transmission. Pharos Base Stations also feature a built-in mount, meaning that no tools are required for installation.







Enterprise Level Hardware Design

To maximize performance and stabilize long distance wireless transmission, the Pharos Series is built with Qualcomm Atheros enterprise level chipsets, high gain-antennas, and high-power amplifiers. In addition to excellent internal components, Pharos Series Base Stations also feature specially designed, weatherproof enclosures and PoE capability. This industry-leading hardware ensures that Pharos Series Base Stations can be deployed in a wide variety of environments, withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F).




Qualcomm Atheros Enterprise Level Chipset
300Mbps Wireless N
Weatherproof Enclosure
Passive PoE Adapter
6KV Lightning Protection
15KV ESD Protection





MAXtream TDMA Technology – Guaranteed Throughput

As networks grow in scale, base stations and other devices often compete for access to a single data connection, resulting in diminished throughput and a poorer experience for the end-user. Pharos Base Stations utilize MAXtream TDMA Technology to counteract this competition and ensure that data transfer rates remain high, even as demand increases.






Pharos Control - Centralized Management System

Pharos Base Stations are equipped with Pharos Control, a centralized management software that helps users easily manage all network devices from a single PC. Pharos Control provides ultimate convenience for users who wish to control device discovery, monitor network status, upgrade device firmware, or perform other network maintenance tasks.








PharOS

PharOS is a user-friendly, web-based management system that allows advanced users and network professionals to perform fine-tune calibration and access more advanced configuration options.






TP-LINK Pharos Provides High Performance Solutions

TP-LINK Pharos series products are dedicated to provide high performance solutions for outdoor wireless networking  applications. Nowadays Pharos includes a variety of CPE and Base station devices, carrier class antennas, and a centralized management application.
































































































  WBS510 WBS210
Wireless Performance
Compatibility802.11 a/n802.11 b/g/n
Wireless Speed300Mbps300Mbps
Transmit Power27dBm27dBm
Maximum Transfer distance50+km30+km
MIMO
Hardware
External Antenna Interface2 RP-SMA connectors for MIMO antenna
Weatherproof Enclosure√(IP65)√(IP65)
ESD Protection15kV15kV
Lightning Protection6kV6kV
Software
Operation ModesAP / Client / Bridge / Repeater / AP Client Router (WISP Client) / AP Router Mode
MAXtream TDMA Mode
Channel Bandwidth5/10/20/40MHz5/10/20/40MHz
Pharos Control Supported


Specifications





























HARDWARE FEATURES
ProcessorQualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
Memory64MB DDR2 RAM, 8MB Flash
Interface1 10/100Mbps Shielded Ethernet Port
1 10/100Mbps Shielded Ethernet Port (LAN1)
2 RP-SMA
1 Grounding Terminal
1 Reset Button
Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Dimensions ( W x D x H )198×75×40 mm
Protection15KV ESD Protection
6KV Lightning Protection
EnclosureOutdoor ASA stabilized plastic material
IP65 water and dust proof Certification






















WIRELESS FEATURES
Wireless StandardsIEEE 802.11a/n
Proprietary ProtocolTDMA Mode (with Pharos MAXtream enabled)
Wireless SpeedsUp to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency5.15~5.85GHz
Note: Available operation frequency may vary depending on the limitaion of the countries or regions in which the device is used.
Transmission Power27dBm/500mW (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

























SOFTWARE FEATURES
Operating ModesAP / Client / Bridge /Repeater
AP Router Mode / AP Client Router(WISP Client) Mode
Network ConfigurationWAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/Dynamic/DHCP
Forwarding: DMZ/ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/Ping Forbidden/VPN/DOS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Wireless ConfigurationsPharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
ManagementDiscovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System ToolsWireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-level Optimizations802.11a/n Tx beamforming technology
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog



















OTHERS
CertificationCE, FCC, RoHS, IP65
Package ContentsOutdoor Wireless Base Station
24V 1A Passive PoE Adapter
Pole Mounting Kit
AC Power Cord
Quick Installation Guide
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
EnvironmentOperating Temperature: -30°C~70°C (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing



BrandTP Link
Warranty1 Year Manufacturer
ShippingSame Day From Lahore
