Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 23dBm/200mw
System-level optimizations for more than 15km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Point-to-Multi-Point Connections

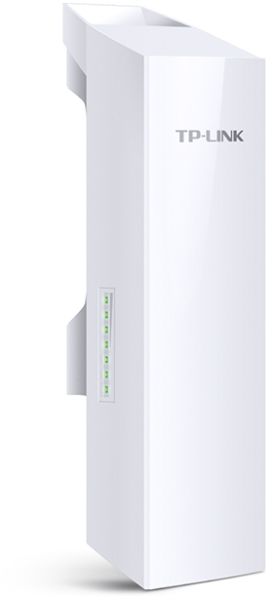

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Qualcomm Atheros enterprise 560MHz CPU
High power Tx and high sensitivity Rx radio front-end design
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference
V-Pol Co-polarization Pattern
H-Pol Co-polarization Pattern
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
15km+
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
5GHz 300Mbps 13dBi Outdoor CPE CPE510
Built-in 13dBi Dual-polarized
Directional Antenna
AP / Client / Repeater / AP Router /
AP Client Router (WISP) operation modes
6KV Lightning Protection
Weather Proof Enclosure
15KV ESD Protection
Passive PoE Adapter
| CPE520 | CPE510 | CPE220 | CPE210 | TL-WA7210N | |
|---|---|---|---|---|---|
| Wireless Performance | |||||
| Wireless Speed | 5GHz 300Mbps | 5GHz 300Mbps | 2.4GHz 300Mbps | 2.4GHz 300Mbps | 2.4GHz 150Mbps |
| Transmit Power | 27dBm | 23dBm | 30dBm | 27dBm | 27dBm |
| Antenna | 16dBi | 13dBi | 12dBi | 9dBi | 12dBi |
| MIMO | √ | √ | √ | √ | - |
| Coverage Range | 20km+ | 15km+ | 13km+ | 5km+ | 5km+ |
| Hardware | |||||
| Compatibility | 802.11a/n | 802.11a/n | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n |
| External Antenna Interface | - | - | - | - | 1 * RP-SMA |
| Weatherproof Enclosure | √(IPX5) | √(IPX5) | √(IPX5) | √(IPX5) | √ |
| Dual Ethernet Ports | √ | √ | √ | √ | - |
| PoE Passthrough | √ | √ | √ | √ | - |
| Grounding Terminal | √ | √ | √ | √ | √ |
| Lightning Protection over Ethernet Cable | √ | √ | √ | √ | - |
| ESD Protection | 15kV | 15kV | 15kV | 15kV | 15kV |
| Lightning Protection | 6kV | 6kV | 6kV | 6kV | 4kV |
| Power Supply | 24V Passive PoE Adapter | 24V Passive PoE Adapter | 24V Passive PoE Adapter | 24V Passive PoE Adapter | 12V Power Adapter + Passive PoE Injector |
| Software | |||||
| Operation Modes | AP / Client / Bridge / Repeater / AP Client Router (WISP Client) / AP Router Mode | ||||
| Channel Bandwidth | 5/10/20/40MHz | 5/10/20/40MHz | 5/10/20/40MHz | 5/10/20/40MHz | 20/40MHz |
| Transmit Power Control | Stepping 1dBm | Stepping 1dBm | Stepping 1dBm | Stepping 1dBm | Stepping 3dBm |
| MAXtream TDMA Mode | √ | √ | √ | √ | - |
| Throughtput Monitors | √ | √ | √ | √ | - |
| Spectrum Analyzer | √ | √ | √ | √ | - |
| Iperf Speed Test Tool | √ | √ | √ | √ | - |
| Pharos Control Supported (Central Network Management Application) | √ | √ | √ | √ | - |
Features
Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 23dBm/200mw
System-level optimization for more than 15km long range wireless transmission
TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
Outdoor stabilized enclosure with IPX5 waterproof certification
Dual Ethernet ports and grounding terminal integrated
6KV Lightning Protection, 15KV ESD Protection
Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely
Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
Selectable bandwidth of 5/10/20/40MHz
Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools
Easy antenna alignment with wireless signal quality indicators via Web interface
Specifications
| HARDWARE FEATURES | |
|---|---|
| Processor | Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal 1 Reset Button |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Power Consumption | 10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Dimensions ( W x D x H ) | 224 x 79 x 60 mm |
| Antenna Type | Built-in 13dBi 2x2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet |
| Protection | 15KV ESD Protection 6KV Lightning Protection |
| Enclosure | Outdoor ASA stabilized plastic material IPX5 waterproof Certification |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
| Frequency | 5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Transmission Power | 23dBm/200mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. |
| SOFTWARE FEATURES | |
|---|---|
| Wireless Configurations | Pharos MAXtream TDMA Technology 802.11a/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
| Management | Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server |
| System Tools | Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute |
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog |
| POE ADAPTER FEATURES | |
|---|---|
| Dimensions(W x D x H) | 110*57*33.5mm |
| Input Current | 0.8A Max @ 100VAC |
| Input Voltage | 100VA~240VAC @ 50Hz~60Hz |
| Output | 24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | >80% |
| Output Voltage | 24VDC(+4,5pins; -7,8pins) |
| Input | 100-240VAC, 50/60Hz |
| Power Status LEDs | 0~0.8A: Green 0.8A~1.0A: Red |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| Interfaces | 1 AC Jack with Earth Ground 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data) 1 10/100/1000Mbps Shielded Ethernet Port (Data) |
| Button | Remote Reset Button |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IPX5 |
| Package Contents | Outdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Environment | Operating Temperature: -30°C~70°C (-22℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
