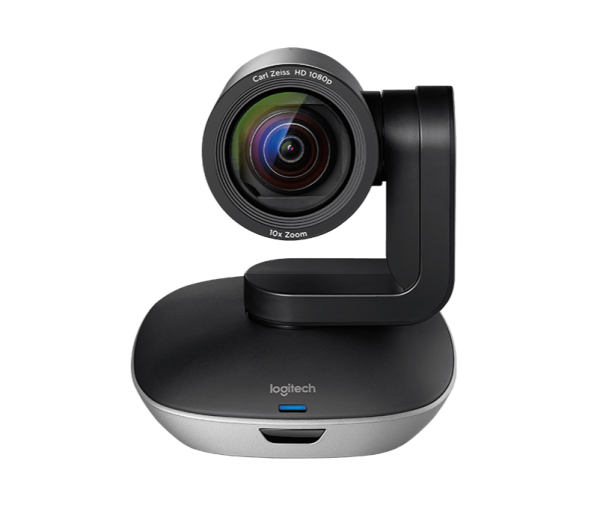

Logitech Group Video Conferencing For Mid To Large-Sized Meeting Rooms Conference Cam

VIDEO CONFERENCING FOR MEDIUM TO LARGE GROUPS

Any meeting place can become a video collaboration space. Logitech GROUP is as simple to use as a mobile phone and as affordable as an office chair. The base system is designed for meetings with up to 14 people in one room – optional expansion mics allow up to 20 people to collaborate. USB plug-and-play connectivity enables you to simply connect a laptop and start a video meeting.

PERFECT FOR 14 TO 20 PEOPLE

Meeting participants now can be easily seen and heard. GROUP delivers HD video and exceptionally clear audio. Optional expansion mics are available for larger rooms. Advanced features like acoustic echo cancellation, noise reduction technology, and intuitive controls deliver natural sound.

EASY, PLUG-AND-PLAY SIMPLICITY

To set up a video meeting with GROUP, connect it to your laptop through USB, and you’re good to go. Use GROUP with any video conferencing software, including those you already use. For great-sounding audio calls, pair your mobile device with Bluetooth® wireless technology to the GROUP speakerphone.

OPTIONS GIVE YOU VERSATILITY

Customize the setup to match the layout and size of your room. GROUP offers options for camera mounting and mics: Use the camera on the table, attach it to a tripod, or mount it on the wall with included hardware. Optional expansion mics extend the coverage up to 8.5 meters (28').

HIGH-DEFINITION VIDEO

Bring meetings to life with GROUP’s high-quality HD 1080p video at 30 frames per second. H.264 compression reduces bandwidth. 10x zoom provides close ups with detail and clarity. ZEISS® lens certification meets high standards for video quality. Autofocus simplifies setup.

NATURAL-SOUNDING AUDIO

Everyone hears and can be heard with GROUP’s duplex speakerphone, which delivers sound that’s crisp, clear, and highly intelligible. Acoustic echo cancellation and noise reduction technology make conversations natural-sounding while reducing reverberation and ambient noise.

Specs & details

Dimensions

Camera:
Height x Width x Depth: 130 mm x 170 mm x 138 mm
Weight: 585 g

Speakerphone:
Height x Width x Depth: 240 mm x 65 mm x 240 mm
Weight: 1223 g

Hub:
Height x Width x Depth: 94 mm x 34 mm x 74 mm
Weight: 83 g

Remote:
Height x Width x Depth: 50 mm x 120 mm x 12 mm
Weight: 51 g

Wall/Table Mount:
Height x Width x Depth: 210 mm x 120 mm x 99 mm
Weight: 255 g

System Requirements

Windows® 7, 8.1 or 10
Mac® OS X 10.7 or higher

Technical Specifications

Camera:

Smooth motorized pan
Tilt and zoom
Controlled from remote or console 260°pan
130-degree tilt
10x lossless HD zoom
90-degree field of view
Full HD 1080p 30fps
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Autofocus 5 camera presets
Far-end control (PTZ) of ConferenceCam product
ZEISS lens certification
Kensington security slot
LED to confirm video streaming
Standard tripod thread

Remote control:

Dockable 8.5 m/28-foot range

Speakerphone:

Full-duplex performance
Acoustic echo cancellation
Noise reduction technology
Ultra-wideband audio
Bluetooth and NFC enabled
LCD for caller ID, call duration and other functional response
LEDs for speakerphone streaming, mute, hold, and Bluetooth
Touch controls for call answer/end, volume and mute, Bluetooth – plus camera
PTZ, “home” preset and far-end control
Microphones (Tx)
Four omni-directional microphones supporting 6 m/20-foot diameter range
Frequency response: 100Hz – 11KHz
Sensitivity: -28dB +/-3dB
Distortion: <5% from 200Hz
Kensington security slot

Hub / Cable:

Central mountable hub for connection of all components
Included adhesive solution for under-table mounting
Two cables for connection between hub and camera/ speakerphone (Length: 5m/16 ft)
One USB cable for connection to PC/Mac (Length: 2 m/6.6 ft)
AC Power adapter (Length: 3 m/9.8 ft)

Mount:

Dual purpose mount for wall placement or for elevating camera on table

Compliance and tools:

USB 2.0 compliant
UVC-compliant video and audio for broad application compatibility
Skype for Busines certified, Microsoft® Lync®, Cisco Jabber® and WebEx® compatible
Enhanced integration with Logitech Collaboration Program (LCP) members
Downloadable diagnostic tool
Field upgradeable firmware tool
Downloadable app plug-ins for advanced feature support
