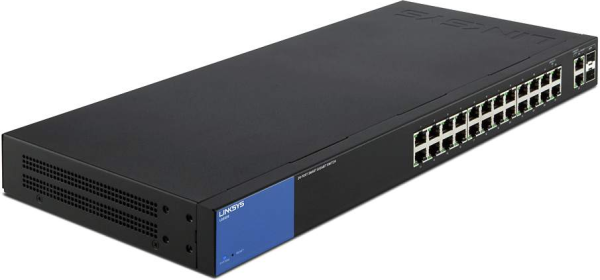

Linksys LGS326-26 Port Business Smart Gigabit Switch with 2 Combo SFP Ports
Coming Soon
Special Offers
Samsung Galaxy A34 5G 8GB 256GB
Vivo V30 5G 12GB 256GB
HP Pavilion 15 EH3050AU AMD Ryzen 7 7730U 16GB 1TB SSD
Realme Note 50 4GB 64GB
Tecno Spark 20 Pro Plus 8GB 256GB
Lenovo IdeaPad 1 15AMN7 AMD Ryzen 5 7520U 8GB 512GB SSD
Designed for business-class management, security, speed, and quality of service, with 26 gigabit ethernet ports.
Proven Performance and Reliability
Easy Configuration and Management
Advanced Network Security
IPv6 Support
Enhanced QoS
Enhanced Security
Meets EEE (Energy Efficient Ethernet) 802.3az standard
FEATURES
QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION
Numerous QoS features prioritize traffic, ideal for real-time voice and video applications & high bandwidth graphic or video uploads and downloads.
NETWORK EXPANSION FEATURES
Build a mesh of switches easily with features like Spanning Tree Protocol (STP) and Storm Control. They help control planned or inadvertent cable loops so you can expand your network with confidence.
ADVANCED NETWORK SECURITY
Ensure data passes to authorized clients only with Port authentication and MAC-based port security. Advanced DHCP snooping and IP-MAC binding functions assure network integrity and help prevent attacks.
TECHNICAL SPECS
Network Standards:
- IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3ad IEEE 802.3az IEEE 802.1d IEEE 802.1Q/p IEEE 802.1X
LEDs:System (blue), Link/Act (green)
System Power Consumption without PoE+:110V:17.62W 220V:17.72W
Forwarding Rate:38.69 Mpps
Switching Capacity:52 Gbps
Jumbo Frame (FE, GE):9K
Dimensions (LxWxH):440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
Weight:2.424 kg (5.33 Ibs.)
Power Input:100–240V 50-60 Hz (0.7A max)
Operating Temperature:0 to 50°C (32 to 122°F)
Storage Temperature:-40 to 70°C (-40 to 158°F)
Operating Humidity:10 to 90% RH
Storage Humidity:10 to 90% RH (non-condensing)
Spanning Tree:IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
Link Aggregation:IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
VLAN:
- Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
- VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
IGMP Snooping:
- IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth- intensive video traffic to only the requestors; supports 256 multicast groups
Port Mirroring:
- Traffic on multiple ports (up to four ports) can be mirrored to another port for analysis with a network analyzer
- 802.1x Radius authentication DHCP snooping IP-MAC binding Port security supports limited dynamic lock and locked MAC address Management access control
RMON:
- Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
Other Management:
- Telnet (menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
Firmware Upgrade:Web Browser (HTTP/HTTPS) TFTP
QoS - Class of Service:
- Port-based, 802.1p priority- based, IPv4/v6 IP DSCP-based
- 2 combo on ports g25, g26
Green Power Mode:EEE+, Short Reach + Energy Detect
QoS - Priority Levels:4 hardware queues
QoS - Scheduling:Priority queuing and weighted round robin (WRR)
Total System Ports:26GE
Mac Addresses:8K
