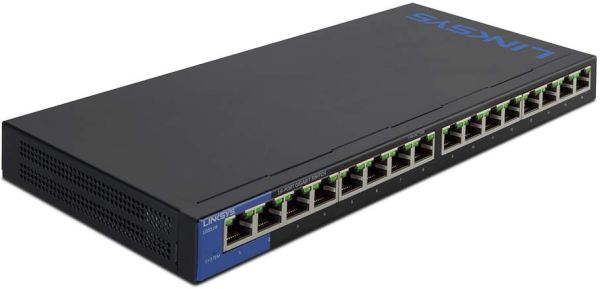

Linksys LGS116P-16 Port Gigabit Ethernet PoE+ Unmanaged Switch
Upgrade the data paths of your local wired network to information superhighways with 16-port desktop Gigabit PoE switches.
Wired connection speed up to 1,000 Mbps
16 Gigabit Ethernet autosensing ports
Power over Ethernet Plus (PoE+) support
Easy plug & play connection
QoS
Meets EEE (Energy Efficient Ethernet) 802.3az standard
FEATURES
GIGABIT PERFORMANCE
Minimize transfer times and stream high-bandwidth files to connected devices without interference.
PLUG-AND-PLAY CONVENIENCE
Instantly extend your office network with a quick and easy installation.
QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION
Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion.
AUTO-SENSING PORTS
Automatically optimize speed for each connected device.
INTEGRATED POWER OVER ETHERNET PLUS (POE+)
Makes installation simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE) standard.
TECHNICAL SPECS
- LGS116P
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3az
IEEE 802.3af
IEEE 802.3at (PoE+)
Ports:
- 16-port switch with 8 PoE+ ports (first 1–8 ports) and dedicated PoE power budget of 80 W
LEDs:
- Link, speed, activity, and PoE indicators
Full line rate and forwarding rate of 64B frame at:
1.488 Mpps for 1000M port
0.1488 Mpps for 100M port
0.01488 Mpps for 10M port
MAC Address Table Size:
- 8,000 entries
- 32 Gbps (non-blocking)
- None
- Connected devices need Ethernet connectivity and Ethernet cables.
- 280 x 120 x 25 mm (11.0 x 4.7 x 1.0 in.)
- 0.822 kg (1.81 lbs)
- 54 VDC, 1.66 A
- 4.52 W / 11.31 W
- Cable connected detection, sleep mode
- External
- 0–50°C (32–122°F)
- -40–70°C (-40–158°F)
- 10–90% (non-condensing)
- 10–90% (non-condensing)
- Wall
- 802.1p and DSCP
- FCC Class A, CE
Brand | Linksys |
---|---|
Warranty | 7 Day Replacement |
Shipping | 24 - 48 hrs |
